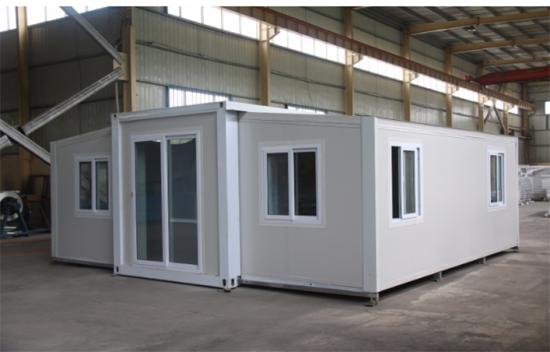

Portable folding 20ft 40ft expandable ready made container house
Product Details
|
Steel structure |
List | Part Name | Specification | Remark |
| 1 | steel column | Steel panel 3mm thickness Bend part | ||
| 2 | Main bottom beam | 150*75*3.0mm | ||
| 3 | Main top beam | 12#*6mm | ||
| 4 | Secondary beam | 80*80*2.0mm | ||
| 5 | PANEL | galvanized steel corrugated sheet 1.0mm | ||
| 6 | Bottom frame purlin | 80*40*2.0mm | ||
|
Panel, Door and Window |
List | Part Name | Specification | Remark |
| 7 | Ceiling |
1150×50×0.326mm double side Choi foam sandwich panel (white and grey) |
||
| 8 |
external wall panel |
Bending piping 2.5mm+1150×50×0.326mm 0.326mm double side Choi foam sandwich panel (white and grey) | ||
| 9 | Floor | Fireproof panel 15mm (yellow)+PVC grain board | ||
| 10 | Door panel | 304 SS door (primary colours) | W*H: 1520mm*2200mm, 1 set | |
| 11 | Sliding window | aluminium alloy sliding window (white) | W*H:930mm*1200mm, 8 sets |
Product advantages:
1.Environmental friendly,no waste produced during assemble and the house can be repeated removable.
2.Flexibility when fixing doors,windows and interior partitions, many options are offered.
3.Modern appearance, optional colors for the walls/panel and roof and the appearance can be decorated according to the needs.
4.Cost saving 5 workers +10Min =1 House and fewer workers to manage onsite. And it can lower the labor cost.
5.Easy installation the expandable container house is prefabricated in the factory, and just simply assemble on site.
Function:
* Disaster shelters
* Granny flat
* Garden house
* Secondary dwelling
* Camp house
* Economic house
* Farmhouse
* Tiny house
Our container houses are mostly used for house living and superior office, with flexible design to suit various needs, especially in following cases:
* Short construction period and few workers,
* Need temporary buildings ready in a short time,
* Site constrains to prefab house,
* Great fluctuation in number of workers during construction.
Service:
♦24 hours on line & one to one consultant service, solve your problem efficiently and tlmely.
♦Quick assembly video and instruction can be provided.
♦Professional installation team and site engineers are prepared.
♦Customers are warm welcomed to visit our factory at any time.
♦Perfect arrangement for customers from Hotel booking to product shipping.
♦Perfect aftersale service is offered.
