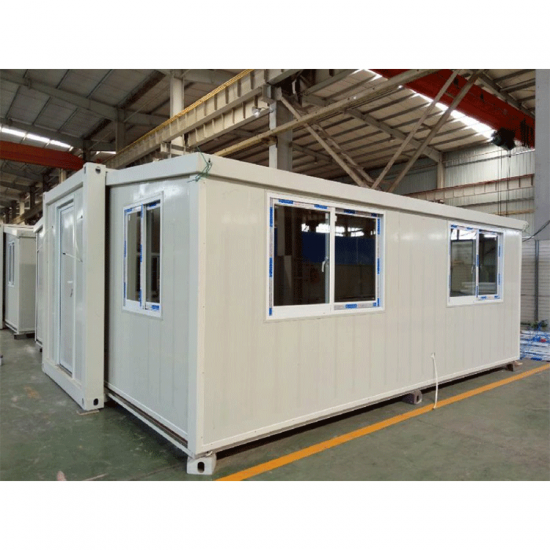

Custom length smart design mobile expandable container house
Product Details
|
Steel structure |
List | Part Name | Specification | Remark |
| 1 | Steel column | Steel panel 3mm thickness Bend part | ||
| 2 | Main bottom beam | 150*75*3.0mm | ||
| 3 | Main top beam | 12#*6mm | ||
| 4 | Secondary beam | 80*80*2.0mm | ||
| 5 | Panel | galvanized steel corrugated sheet 1.0mm | ||
| 6 | Bottom frame purlin | 80*40*2.0mm | ||
|
Panel, Door and Window |
List | Part Name | Specification | Remark |
| 7 | Ceiling |
1150×50×0.326mm double side Choi foam sandwich panel (white and grey) |
||
| 8 |
External wall panel |
Bending piping 2.5mm+1150×50×0.326mm 0.326mm double side Choi foam sandwich panel (white and grey) | ||
| 9 | Floor | Fireproof panel 15mm (yellow)+PVC grain board | ||
| 10 | Door panel | 304 SS door (primary colours) | W*H: 1520mm*2200mm, 1 set | |
| 11 | Sliding window | aluminium alloy sliding window (white) | W*H:930mm*1200mm, 8 sets |
Product Description
Product Advantages
1.Durability：Safety and reliable light steel flexible structural system.
2.Convenience : Easy to transport.
3.Elegant appearance : Good and attractive appearance.
4.High quality : Waterproof, sound-insulated, heat preservation, seal, easy to clean and maintenance.
5.Various designs : Any dimension and customized design are available.
6.Easy installation : Quick to be assembled and disassembled.
7.Long service time : Life span can be over 15 years.
It's flexible and customizable.
Get creative and enjoy the flexibility of modular house. These units can be customized according to your preference and design aesthetic.
The house components like the doors, windows, and flooring can be custom selected according to application.
Application:
* Disaster shelters
* Granny flat
* Garden house
* Secondary dwelling
* Camp house
* Economic house
* Farmhouse
* Tiny house
* Outdoor temporary dormitory
* Hotel
It would be great for you to provide us your detailed information if you are interested in our expandable containers houses, then we can give you a better offer.
1).Dimension:Length,width,height,roof pitch.
2).Doors,windows and other fittings:dimensions,quantity,the position to fix.
3).Where will your house be located?
4).Local climate:Wind speed,snow/rain load,earthquake.
5).Are there any materials that are not allowed to import into your country?
