What's expandable container house ?
Apr 2,2020

What's expandable container house

Open Concept home design is all the rage, but rarely available to a Tiny House shopper. With this expandable container house you can have the Open Space you desire. A quick fold-out provides a space that is Functional and Comfortable.

expandable container house

Features of 3 in 1 expanding container house

1.FAST ASSEMBLING-can be installed in 10 minutes.
2.SAFE AND DURABLE-over 15-20 years lifespan,seismic resistance to 8 degree,wind resistance to 11 degree.
3. all bathroom,kitchen,electricity,plumbing are pre-installed in our factory
4. In total 37.44SQM,Big area become more comfortable.
5. Walls and roof are with insulation
6. Less material to install, more convenient and environmental protection.
7.Save shipping cost-folded up to be loaded in container,1*40HC container can load 2 units

expanding container house

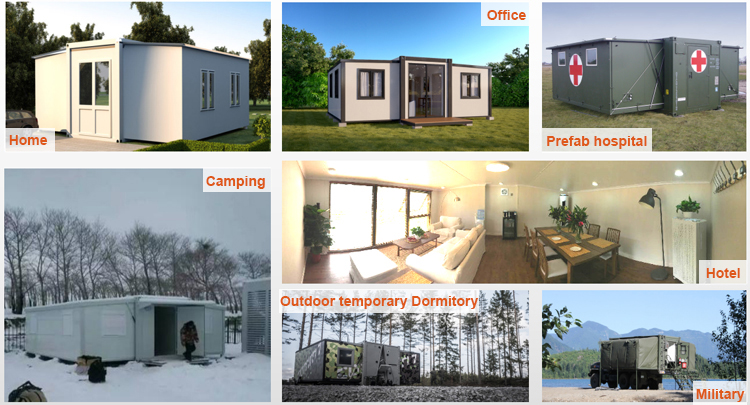

Application for hospitals, battlefields, living homes, offices, conference halls, mobile shops, etc....

3 in 1 container house

Specification


Steel structure
List Part Name Specification Remark
1 steel column Steel panel 3mm thickness Bend   part
2 Main bottom beam 150*75*3.0mm
3 Main top beam 12#*6mm
4 Secondary beam 80*80*2.0mm
5 PANEL galvanized steel corrugated sheet  1.0mm
6 Bottom frame purlin 80*40*2.0mm

Panel, Door and Window
List Part Name Specification Remark
7 Ceiling 1150×50×0.326mm double side Choi foam sandwich panel
(white and grey)

8
external wall panel
Bending piping 2.5mm+1150×50×0.326mm 0.326mm double side Choi foam sandwich panel (white and grey)
9 Floor Fireproof panel 15mm (yellow)+PVC grain board
10 Door panel 304 SS door (primary colours) W*H: 1520mm*2200mm, 1 set
11 Sliding window aluminium alloy sliding window (white) W*H:930mm*1200mm, 8 sets

Two type you can choose

expandable container houses

living container house

More, We have professional designers, engineers, and installation teams. If you want to design your own, we can provide services. If you are interested, please contact us.
