There are all different kinds of flat pack container house in the market, which may dazzles you and makes you hesitate over your choice when you plan your building design. The more you know about flat pack container house, the better you make a choice.

What is flat pact container house?

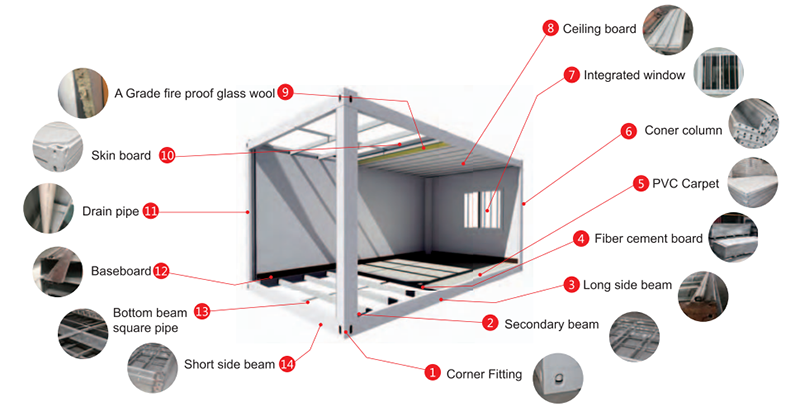

It is a form of prefabricated module using shipping container as structural element. The construction is based on steel frame and four detachable walls. Each tiny module can be combined and stacked into larger structures. Now what you see from the markets are modified from one or more units of original shape of flat pack container house. Of course, you also could make a flexible design after you purchase it.

Take the space, thickness, safeness and comfort into account. Understanding the following spec., structure, material and application purpose can help you make a wiser decision.

1. Spec.

The standard dimension is 5.8m length, 2.4m width and 2.89m height. It also could be altered and customized.

It also could be altered and customized with 8m max length, 4m max width and 3.3m max height.

2.Structure

• The SGS test steel frame structure is safe for wind resistance of magnitude 11 and anti-seismic of magnitude 8.
• The four corner fittings are connected with base frame and roof frame by bolts which allow it to be easy installed and detached.The whole prefabricated kits are done in the factory. Generally speaking, 4 persons could fast assemble one unit in 2 hours.But before installing it, you should lay the concrete or wood foundation with 6 piles. The dimension of pile foundation depends on the local soil condition.

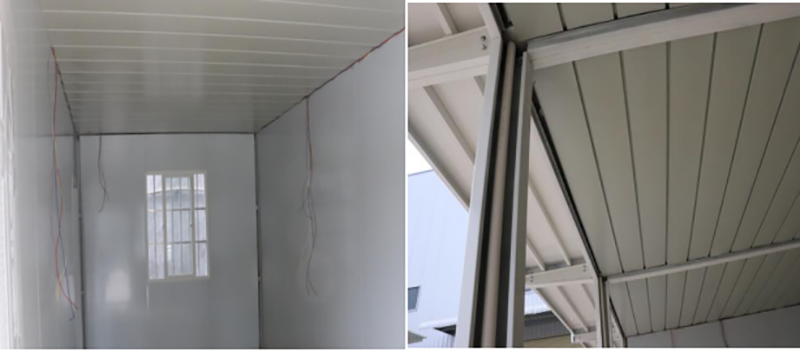

• It is important to think about the layout of electrical system and drainage system.Electric wires can be internally installed in the wall or roof panels.The roof arches up and outward and 4 drainage pipes are concealed in the corner columns,which allow the rain to flow out smoothly .

3. Material

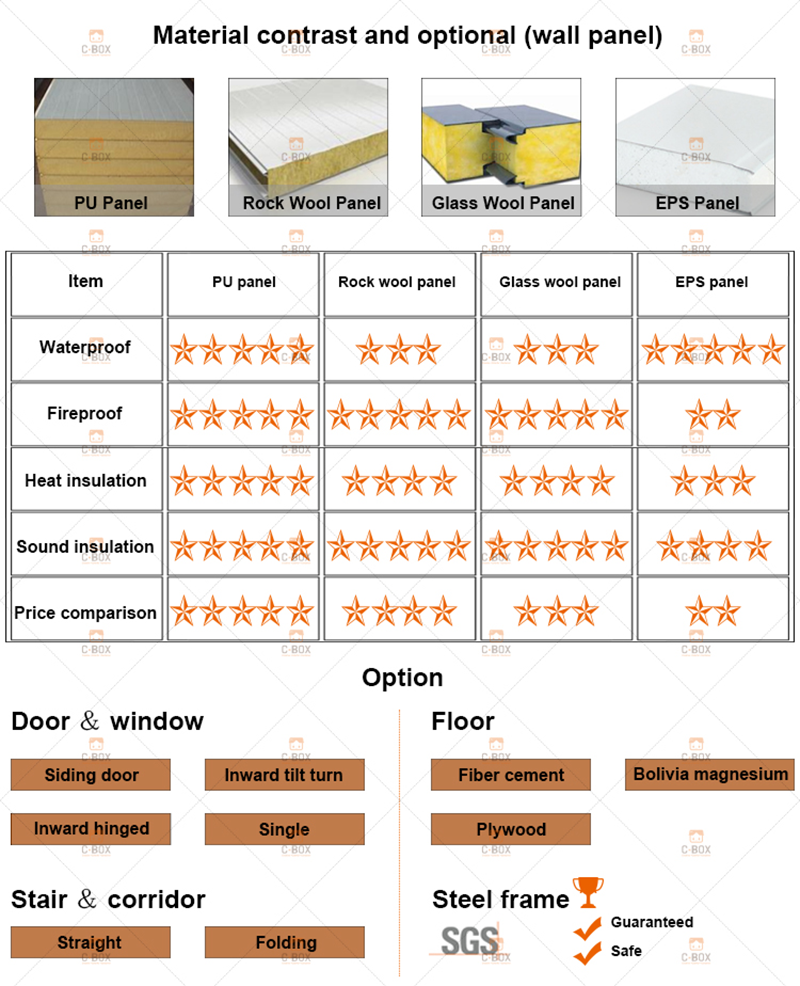

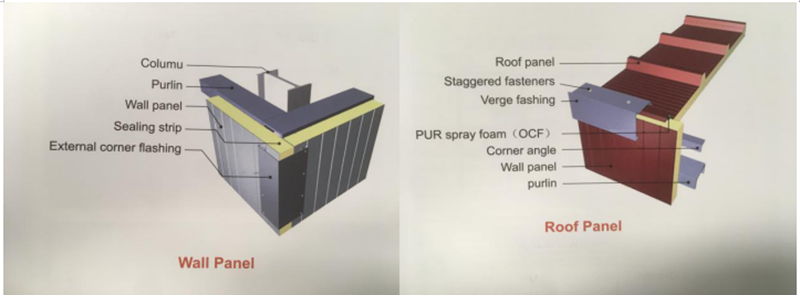

The function of waterproof ,fireproof ,heat insulation and sound insulation depends on the choice of different materials, as attached in the following picture. The thickness of rock wool or glass wool panels is very important for insulation from heat and Sound.Rock wool has almost the same function and price with glass wool. The difference exists in the material requirement for import from different countries. Now most of flat pack containers houses are made from 3 or more layers of sandwich panels, rock wool or glass wool in the middle, which enhance the comfort of indoor. If a lot of solid materials are put to use in the flat pack container house, the life span can reach 20 years or more.The solider materials, the higher price.However,even if you use all the solid materials, the construction cost is still greatly lower than your concrete or wood building.

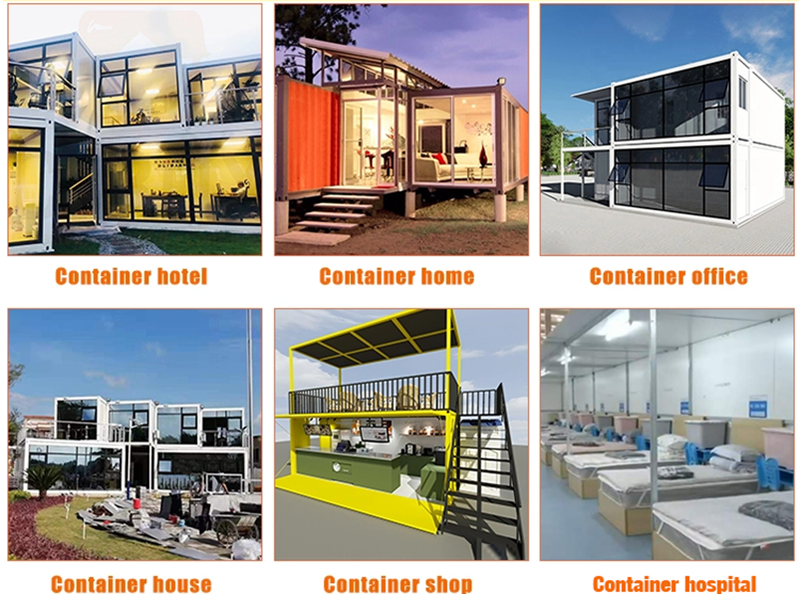

Due to its flexible design, flat pack container house can be easily modified to fit many purposes, such as container home,container office ，container shop,container hotel,container hospital,refugee camp and so on.

In a short, before building your flat pack container house, it is sensible to consider your application purpose to choose the right size, structure and materials.

If you wanner know the application purpose on container shopping mall, welcome to read my next blog.
