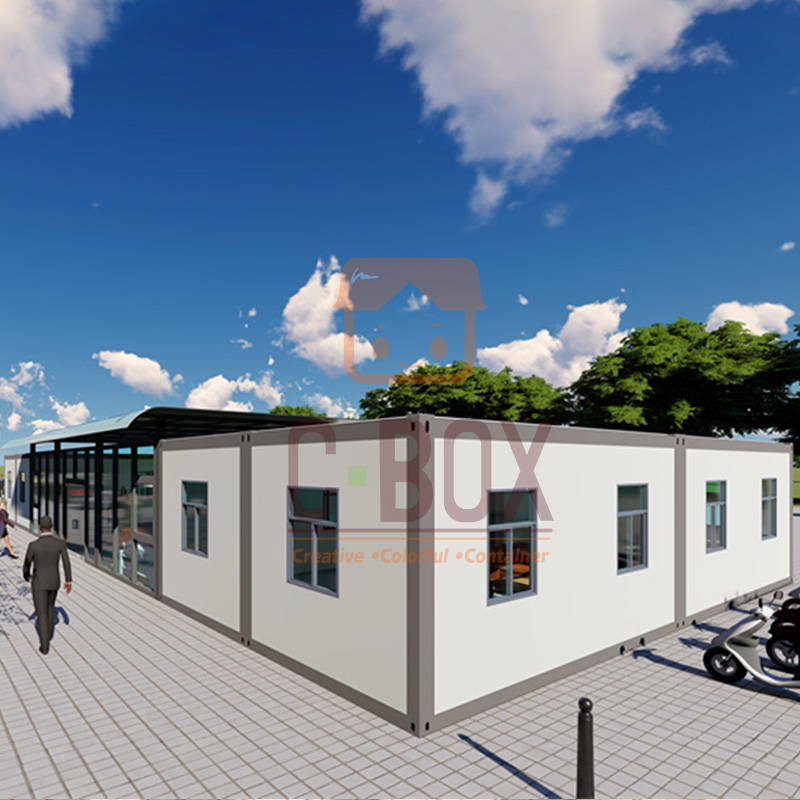

Prefabricated Office Building With Steel Structure

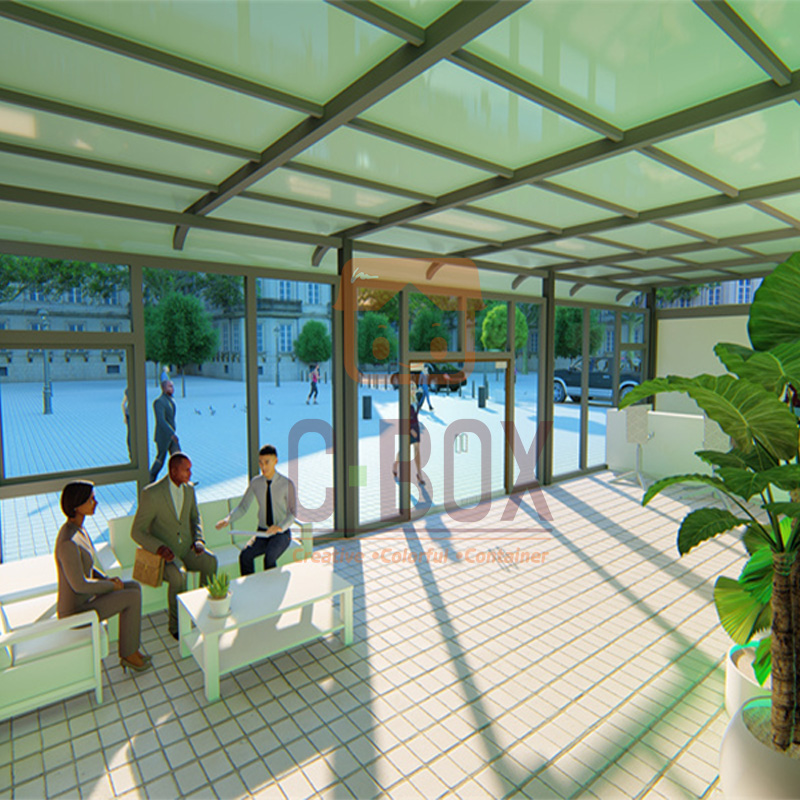

This office building is built with Detachable Container Houses, covering 284.41 square meters. The Chinese "Sanheyuan" style design is not only sturdy but also neat and beautiful. In the middle of prefabricated office building is a 11900*5900 light steel sunshine canopy, and the top adopts a PC sunshine board, which has a better rainproof and sound insulation effect. The front is designed with a glass curtain wall, with better lighting and more atmosphere.

  • Item NO.:

    DC008
  • Lead Time:

    15 working days
  • Brand:

    Cbox
  • Color:

    Customized
  • Product Detail

CBOX Prefabricated Office Building With Steel Structure


prefabricated office building



prefabricated building


Quotation list of Detachable container house
No. Component Specification Unit Quantity Remarks
1 Column 2480*2.3 Strip 4 High of Beam:195MM
2 Bottom Beam 5630*2.3 Strip 2 Sink:65MM
3 Bottom Beam 2680*2.3 Strip 2 Thickness:2.3MM Hot-dip Galvanized Sheet Profile
4 Top Beam 5630*2.3 Strip 2 /
5 Top Beam 2680*2.3 Strip 2 /
6 Corner Piece 195*165*4 Piece 8 /
7 Top Platen Slot 5730*1.2 Strip 2 Galvanized
8 Top Platen Slot 2790*1.2 Strip 2
9 Corner Fitting 120*1.2*2530 Strip 1
10 Bottom Beam SquareTube 100*50*2980*1.3 Strip 9 Galvanized
11 Top Beam SquareTube 50*50*2800*1.8 Strip 2 Galvanized, with Card Slots On Both Sides
12 Top Beam SquareTube 80*40*1880*1.5 Strip 3 Galvanized
13 Top Beam Square Tube 60*40**1880*1.5 Strip 6
14 Main Frame Bolt ST100*30 Piece 64 Carriage Bolt
15 Bottom Beam Bolt ST100*80 Piece 18
16 Floor 2800*1146*18 Sheet 5 MGO Fireproof Board
17 Structural Adhesive   Piece 5 /
18 Ceiling Board 2788*200*0.3 Piece 29 /
19 Roof Tile 2920*950*0.5 Piece 6 /
20 Roll Felt 20M Roll 1 /
21 Hardware   Carton 1 /
22 Butyl Rubber Strip   M 12 /
23 Corner Fitting 38 Strip 2 /
24 Door 925*2050 Piece 1 /
25 Window 925*1200 Piece 2 /
26 Board Material 2560*950*50 Piece 15 0.276Glass Wool Board
27 Board Material 1380*950*50 Piece 2 0.276Glass Wool Board
28 Board Material 460*950*50 Piece 1 0.276Glass Wool Board


modular prefabricated building


     As per the floor plan, entering the hall of this container office, the first thing you see is the corporate image wall, which expresses the company's corporate image, conveys the corporate culture, displays the strength of the corporate image wall, impresses customers with the company, and improves the visibility of the company. On the left is the reception desk, and on the right is the living room, which is convenient for receiving guests.
     On the left of the prefabricated office is the staff office area, and on the upper left is an office made of a container, covering an area of 18 square meters, which can accommodate 6 employees. Next to it is the toilet. The lower left is a connected office made of two containers, covering an area of 36 square meters, which can accommodate 12 or more employees.


prefabricated office


Advantage:

Fast installation: 4 workers can install a standard container house within 2 hours

Environment-friendly &Recyclable: It is able to be moved after assembly, which is convenient .

Flexibe combination: Separate independent units can be combined unlimited longitudinally and laterally as required and also the units can be stacked up to 2-3 stories high to further enlarge the space and performance funtion.


house detached garage





     C.Box covers a series of products such as steel structure workshops, flat pack container house, modified shipping container house, detachable container house, folding container house, expandable container house, portable ion, installation, Services, and other one-stop solutions.

     After 15 years of hard work by the company's core team, it has obtained 46 invention patents and utility model patents.

     We take the need of customers as the base, green safe, economical, and comfortable living experience as the root and development of the industry as the purpose.
